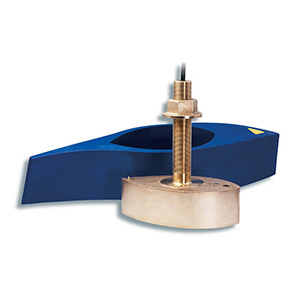

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B260

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B260

商品番号 010-10640-20

ONLINE STORE

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B260

This bronze thru-hull mount transducer works well in deep water.

A popular narrow beam, this 8-pin 1 kW transducer has a depth of 1,800 to 2,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 19 to 6 degrees; and a 0 to 20 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

本体仕様

探索範囲(周波数):50/200 kHz
電源1 kW
ビーム幅19°/6°
最大水深1,800-2,500 ft.
深さ/速度/温度Depth and Temperature
ピンの数8-pin
ケーブルの長さ39 ft.
サポートされているデッドライズ/トランサム角度0°-20° degree deadrise
