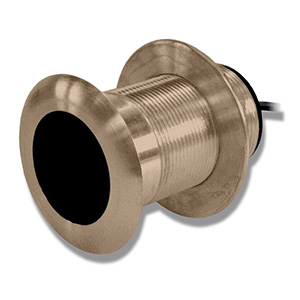

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B117

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B117

商品番号 010-10182-21

ONLINE STORE

Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B117

This bronze thru-hull mount transducer performs well at high speeds.

An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Do not use on metal hulls.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

本体仕様

探索範囲(周波数):50/200 kHz
電源600 W
ビーム幅45°/12°
最大水深800-1,200 ft.
深さ/速度/温度Depth and Temperature
ピンの数8-pin
ケーブルの長さ33 ft.
サポートされているデッドライズ/トランサム角度0°-7° degree deadrise
