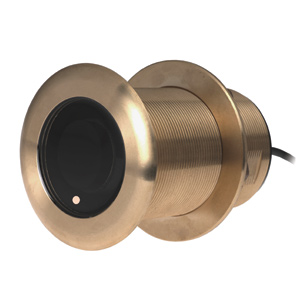

Bronze Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B75M

Bronze Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B75M

商品番号 010-11636-22

ONLINE STORE

Bronze Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B75M

This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD™ 26.

A 600 W transducer with 8 pins, it has a depth of 900 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

本体仕様

探索範囲(周波数):CHIRP (80-130 kHz)
電源600 W
ビーム幅24°/16°
深さ/速度/温度Depth and Temperature
ピンの数8-pin
ケーブルの長さ39 ft.
サポートされているデッドライズ/トランサム角度16°-24° degree deadrise
