Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) - Airmar B164

Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) - Airmar B164

商品番号 010-11010-20

ONLINE STORE

Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) - Airmar B164

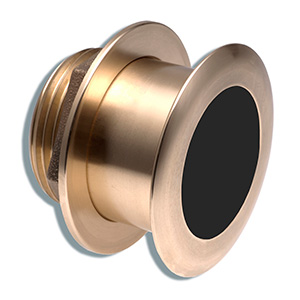

This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage.

An 8-pin 1 kW transducer, it has a depth of 1,200 to 1,800 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 22x20 or 6x6 degrees; and mounts on a 16 to 24 degree deadrise angle.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

本体仕様

探索範囲(周波数):50/200 kHz
電源1 kW
ビーム幅22°x20°/6°x6°
最大水深1,200-1,800 ft.
深さ/速度/温度Depth and Temperature
ピンの数8-pin
ケーブルの長さ39 ft.
サポートされているデッドライズ/トランサム角度16°-24° degree deadrise
