GT15M-TH

GT15M-TH

商品番号 010-12402-20

ONLINE STORE

GT15M-TH

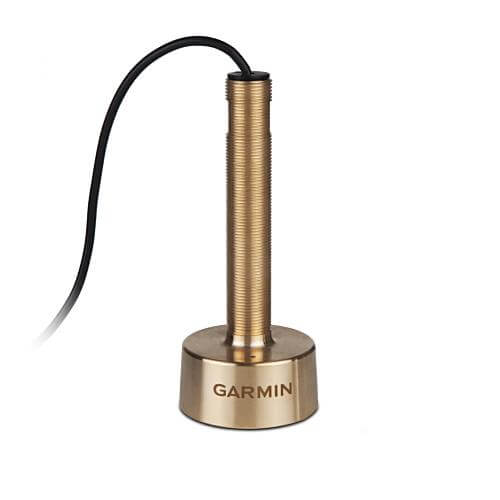

GT15M-TH transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1000 feet.

The 8-pin transducer features mid band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. The bronze thru-hull housing and stem makes it ideal for wooden fishing boats.

Follow the included installation instructions carefully to avoid damaging your boat.

本体仕様

探索範囲(周波数):CHIRP Mid-band (85-165 kHz)
電源600 W
ビーム幅24°-13°
深さ/速度/温度深さと温度
ピンの数8-ピン
ケーブルの長さ20 ft.
サポートされているデッドライズ/トランサム角度0°- 6° deadrise

Weight: 1.00 lb (0.45 kg)
Cable length: 20 ft
Number of pins on connector: 8
Dimensions:
          Transducer:
Frequency:
          Traditional: CHIRP 85-165 kHz
Transmit power:
          Traditional: 600 W
最大深度
          Traditional: 1,900 ft
Beam Width (°) LF/HF (-3dB):
          Traditional: 24/13
Read water temperature: あり

  • GT15M-TH トランスデューサー
  • Thru-hull mount
  • 取付金具
  • ドキュメント
