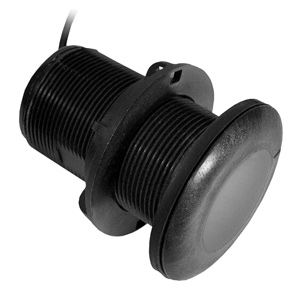

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

商品番号 010-10218-21

ONLINE STORE

Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19

This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.

This 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on wood hulls.

When using with the echo™ series fishfinders, transducer adapter cable part number 010-11947-00 is required.

本体仕様

探索範囲(周波数):77/200 kHz
電源300 W
ビーム幅45°/15°
最大水深900 ft.
深さ/速度/温度Depth and Temperature
ピンの数8-pin
ケーブルの長さ30 ft.
サポートされているデッドライズ/トランサム角度8°-15° degree deadrise
