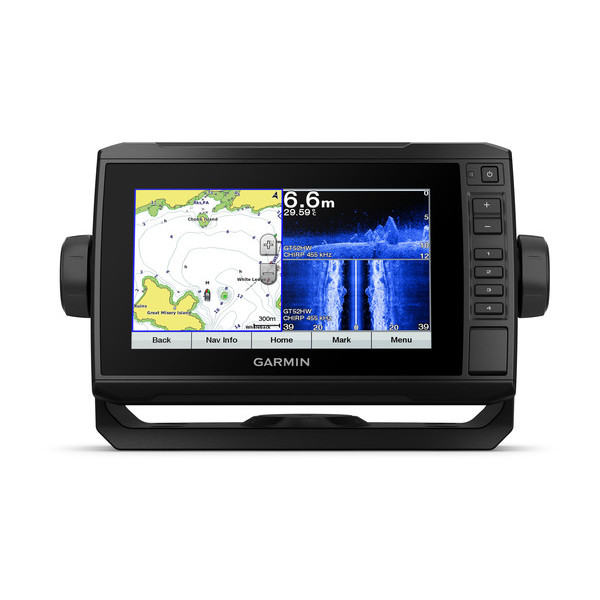

echoMAP™ Plus 75sv
販売終了

echoMAP™ Plus 75sv

商品番号 010-01899-30

ONLINE STORE

echoMAP™ Plus 75sv echoMAP™ Plus 75sv echoMAP™ Plus 75sv

The Combo with Connections

  • Bright, sunlight-readable 7” keyed-assist touchscreen combo
  • Built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVü™ and CHIRP SideVü scanning sonars and compatible with Panoptix™ all-seeing sonar (transducers sold separately)
  • Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
  • Use built-in Wi-Fi® to pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ Community data and more
  • Share sonar, waypoints and routes with other ECHOMAP Plus 7” and 9” units as well as ECHOMAP Ultra 10” and 12” units

At a Glance

Bright, sunlight-readable 7” combo offers the convenience of a keyed-assist touchscreen. It comes with a GT52 transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. It comes preloaded with Canada LakeVü g3 maps with integrated Navionics data, covering more than 13,500 lakes with up to 1’ contours. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi® to pair with the free ActiveCaptain OneChartにアクセスするためのアプリ, which allows you to purchase and download new charts. ActiveCaptain also gives you access to スマート通知1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.

The Garmin CHIRP Difference

The 内蔵ソナー機能 of ECHOMAP Plus 75sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.

CHIRP

Clear Scanning Sonar Images

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars are combined into 1 transducer.

SideVu and ClearVu

自分の地図を作成するための等高線のクイックドロー

Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the 一方で、Garmin ConnectのQuickdrawコミュニティと共有することもできます。™.

Quickdraw

接続 with ActiveCaptain App

Our free all-in-one ActiveCaptain mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi® to pair with the free ActiveCaptain OneChartにアクセスするためのアプリ, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to スマート通知1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

Active Captain

Garmin SailAssist™ Features

SailAssistの機能 include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

最高の水上マップにアップグレード

Step up to BlueChart g3 HD or BlueChart g3 Vision, which adds Auto Guidance2 and other great features. A single microSD card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app and automatically sync with your compatible chartplotter, eliminating the need for an SD card.

Maps

Panoptix Sonarのサポート

ECHOMAP Plus 70cv/70sv/90sv series combos support the full line of Panoptix all-seeing sonar transducers, including the Panoptix LiveScope system.

NMEA 2000® ネットワークサポート

Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.

Take Your ECHOMAP Plus with You

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

¹対応スマートフォンとcompatible mobile device.
²Auto Guidanceは計画目的のみのため、安全なナビゲーション操作に取って代わるものではありません

Wi-Fi® is a registered trademark of the Wi-Fi Alliance.

本体仕様

本体寸法9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
ディスプレイ 6.1" x 3.4"; 7.0" 対角 (15.5 x 8.6 cm; 17.8 cm 対角)
解像度 400 x 800 ピクセル
ディスプレイタイプ WVGAディスプレイ
重量1.7 lbs.(0.77kg)
防水等級IPX7
マウントオプションベイルまたはフラッシュ

地図&メモリ

対応メモリーカード数1 microSD™ card; 32 GB 最大 card size
ウェイポイント5,000
ルート100

センサー

NMEA 2000®に対応
NMEA 0183に対応

チャートプロッタ機能

AIS(自動識別装置)をサポート
DSC(DSC対応のVHFラジオからの位置データの表示機能)をサポート
FUSION-Link™互換のラジオをサポート

接続

NMEA 0183対応ポート1
ビデオ入力ポートなし
ビデオ出力ポートなし
GARMIN MARINE NETWORK™ ポート1 Paなしptix™ port

その他

その他
  • ECHOMAP Plus 7x/9x series
  • GPSMAP 527/547 series
  • GPSMAP 527xs/547xs series
  • GPSMAP 721/741 series
  • GPSMAP 721xs/741xs series
  • GPSMAP 7400/7600 series
  • GPSMAP 7400xsv/7600xsv series
  • GPSMAP 8000 series
  • GPSMAP 800/1000 series
  • GPSMAP 800xs/1000xs series
  • ECHOMAP Plus 75sv
  • 電源/データケーブル
  • クイックリリース式クレードル付きチルト/回転式マウント
  • フラッシュマウント
  • 保護カバー
  • ハードウェア
  • ドキュメント
