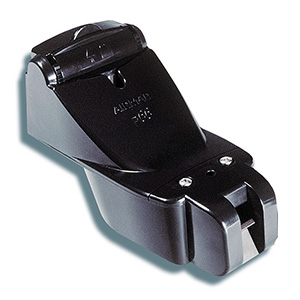

Plastic Transom Mount Transducer with Depth, Speed & Temperature (Triducer, 8-pin) - Airmar P66

Plastic Transom Mount Transducer with Depth, Speed & Temperature (Triducer, 8-pin) - Airmar P66

商品番号 010-10192-21

ONLINE STORE

Plastic Transom Mount Transducer with Depth, Speed & Temperature (Triducer, 8-pin) - Airmar P66

This plastic transducer is the only offshore transom mount to provide depth, speed and temperature in 1 package.

The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 11 degrees; and mounts on a 2 to 20 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

本体仕様

探索範囲(周波数):50/200 kHz
電源600 W
ビーム幅45°/11°
深さ/速度/温度Depth, Speed and Temperature
ピンの数8-pin
ケーブルの長さ25 ft.
サポートされているデッドライズ/トランサム角度2°-20° degree transom
